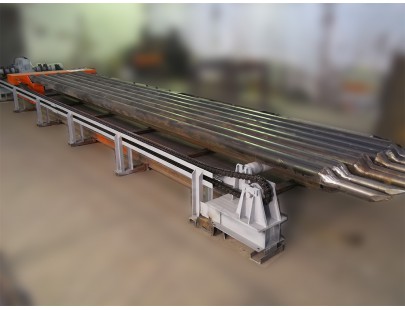

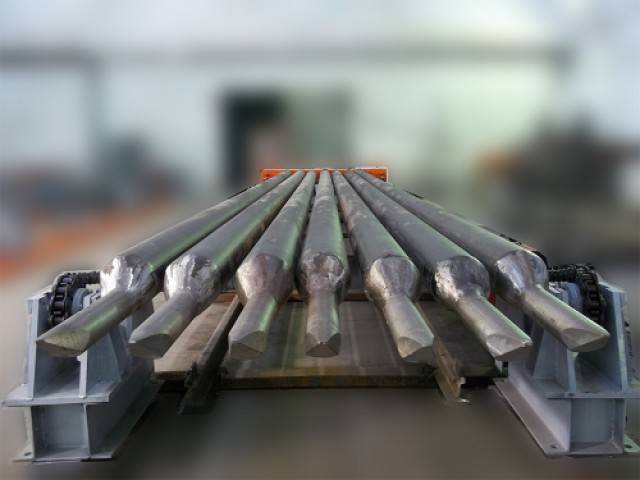

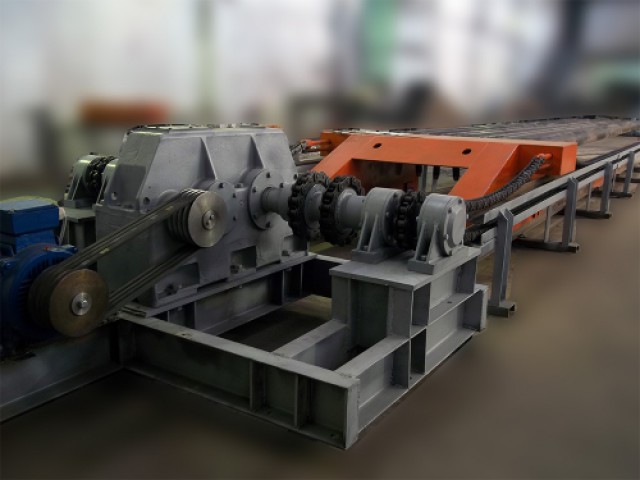

Moulding machine is used for hollow cores formation in concrete slabs at discharging and compaction of the concrete mix.

Technical characteristics:

• The dimensions of the manufactured panels:
      length, mm: up to 6280
      width, mm: up to 1490 mm
      height, mm: up to 220
• Max. extraction force of the inserts, N: 69000
• Extraction speed inserts, km/h:  0,17
• Working stroke, mm: 7200
• Installed capacity, kW: 15,2
• Nominal voltage, V: 380
• Dimensions:
      length, mm: 11440
      width, mm: 2510
      height, mm: 880
• Weight, kg 5400
• Spare parts for moulding machine
• The bearing housing
• Cover
