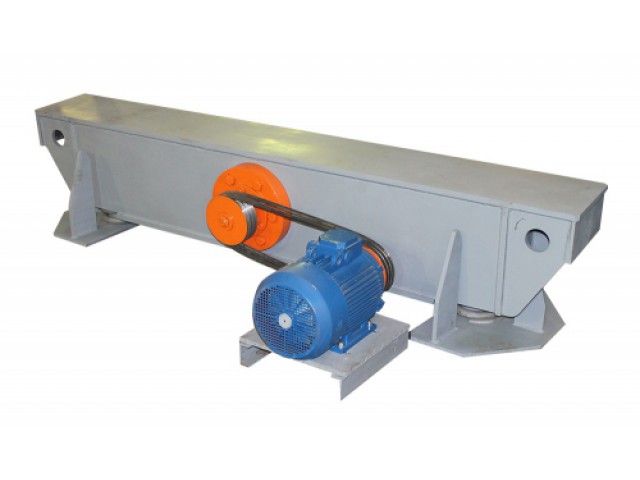

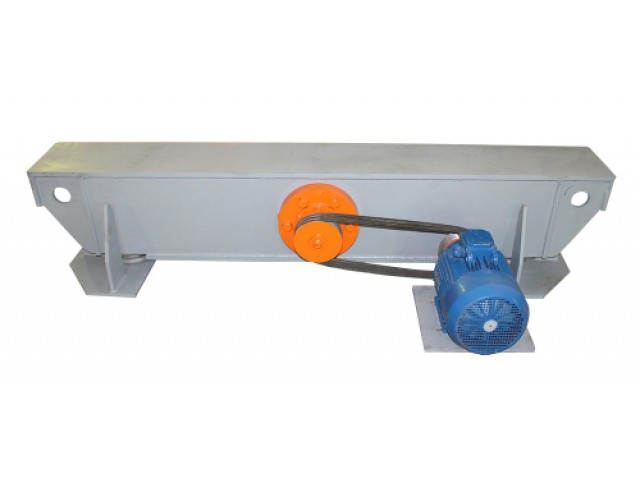

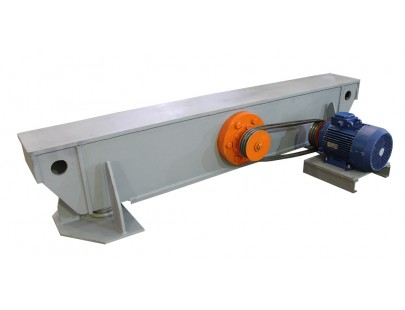

Rosstroytech vibration stations are used for the compaction of concrete. The vibrators are perfectly arranged under the pallet. Vibrators consist of a strong steel case and one metal eccentric shaft rotating inside.
The motor provides a high frequency vibration and high surface quality concrete products by transmission of rotation shaft via pulleys and V-belt transmission directly.
Carrying capacity, tons |
3,0 |
RPM |
1500 |
Capacity, kW |
11 |
Frequency of vibrations per second |
50 |
Amplitude of vibrations, mm |
2-5 |
Weight, kg |
1000 |
Dimensions, LхWхH, mm |
2500х700х600 |
